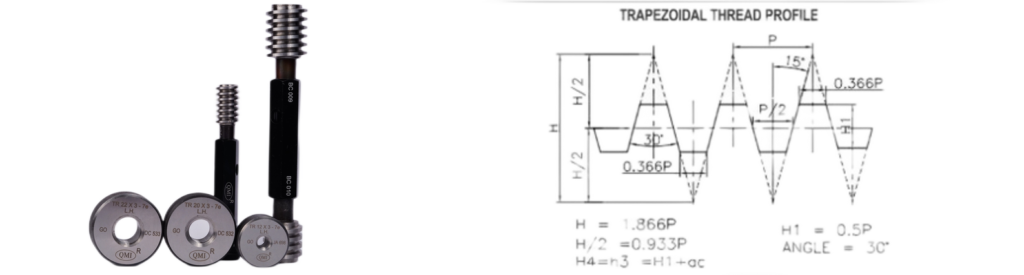

Trapezoidal Thread Gauges
Trapezoidal Threads are used for translation motion in machine tools like lead screws, where rapid movement is required or in screw jacks, where load to be shared is more.
Specification:
ISO Specifications: Basic Dimensions: ISO 2901, DIN 103 & Gauging Practice: DIN 103 (9): 1985.
IS Specifications: Basic Dimensions: IS 7008: 1988, IS 7008 (4): 1999 & Gauging Practice: DIN 103 (9): 1985.
Manufacturing Range:
Thread Plugs, Thread Rings, Check Plugs &
Wear Check Plugs of Diameter from 8 mm to 355 mm and pitches from 1.5 mm to 12 mm.
|
Gauge Type |
Diameter Range(MM) |
Pitches in mm |
Tolerance Class |
|
Thread Plug Gauges. |
8 – 300 |
1.5, 2, 3, 4, 5, 6, 7, 8, 10, 12 Pitches not covered here can be supplied if customer requests |
As given in below Table |
|
Thread Ring Gauges. |
8 – 260 |
1.5, 2, 3, 4, 5, 6, 7, 8, 10, 12 Pitches not covered here can be supplied if customer requests |
As given in below Table |
|
Check Plug Gauges |
To check NEW Go & Nogo Ring Gauges as given above. |
||
|
Wear Check Plug Gauges |
To check / calibrate USED Go & Nogo Ring Gauges as given above. |
||
|
Check Ring Gauges |
To check NEW Go & Nogo Plug Gauges as given above. |
||
|
Wear Check Ring Gauges |
To check / calibrate USED Go & Nogo Plug Gauges as given above. |
TOLERANCE CLASS
|
|
Tolerance classes for Internal Threads (Plug Gauges) |
|
Tolerance classes for External Threads (Ring Gauges) |
|
|
|
|
Tolerance position ‘H’ |
Tolerance position ‘e’ |
Tolerance position ‘c’ |
||||
|
N |
L |
N |
L |
N |
L |
|
|
Medium |
7H |
8H |
7e |
8e |
– |
– |
|
Coarse |
8H |
9H |
8c |
9c |
