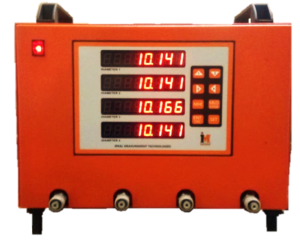

THREE/FOUR CHANNEL AIR ELECTRONIC DISPLAY UNIT

Technical Specifications

• Tricolor eight digits 0.56 inch displays.
• Eight/Six soft touch keys.
• Inch or metric measuring units
• Measuring ranges 1.0 , 0.1, 0.2, 0.5 microns or 0.1, 0.01, 0.02, 0.05 thou
• Display reading in comparative or absolute mode.
• Dynamic features Maximum, Minimum, TIR and AVG.
• Entry in dynamic mode with single key press.
• Memory save setting parameters for different parts.
• Part name entry can be done.
• Serial RS232 output with settable baud rates as 1200bps, 2400bps, 4800bps, 9600bps.
• Inbuilt Transducer, LVDT probe, solenoid valve, no external wiring.
• External Inputs mains cable and Air Supply from FRL unit.
• Separate cabinet for Air filter Regulator with pressure gauge and Air on/off switch.

      Features

• Timer based or Proximity sensor air saving control
• In timer mode air saving, Air can be switched ON with single key Press.
• Air delay can be set from 30 seconds to 300 seconds approximately
• In Proxy mode Air can be switched when Proxy is ON or Proxy is OFF.
• Password entry for setting parameters. One Master password and one User password.
• Power requirement 230VAC +/- 10V 50HZ
